Specifications
General
Power

4x 45W (4 Ohms)
4x 72W (2 Ohms)

Inputs

1x USB
1x Stereo Pair RCA
Bluetooth

Outputs

1x 4V Stereo Pair RCA

Supported Media

Bluetooth
USB
DAB+
AUX
MP3
AM/FM Radio

Design
Environment Protection

IP65 Rating
CE, RoHS, WEE, FCC Certifications

Materials

Monochrome TFT with Blue Backlight
ABS, Conforming PCB Coating
Aluminium Chassis

Dimensions
Overall

210mm x 139mm x 65mm

Display

210mm x 65mm

Mounting Depth

107mm

In the Box
  • 1x MP6 Shallow Mount Stereo

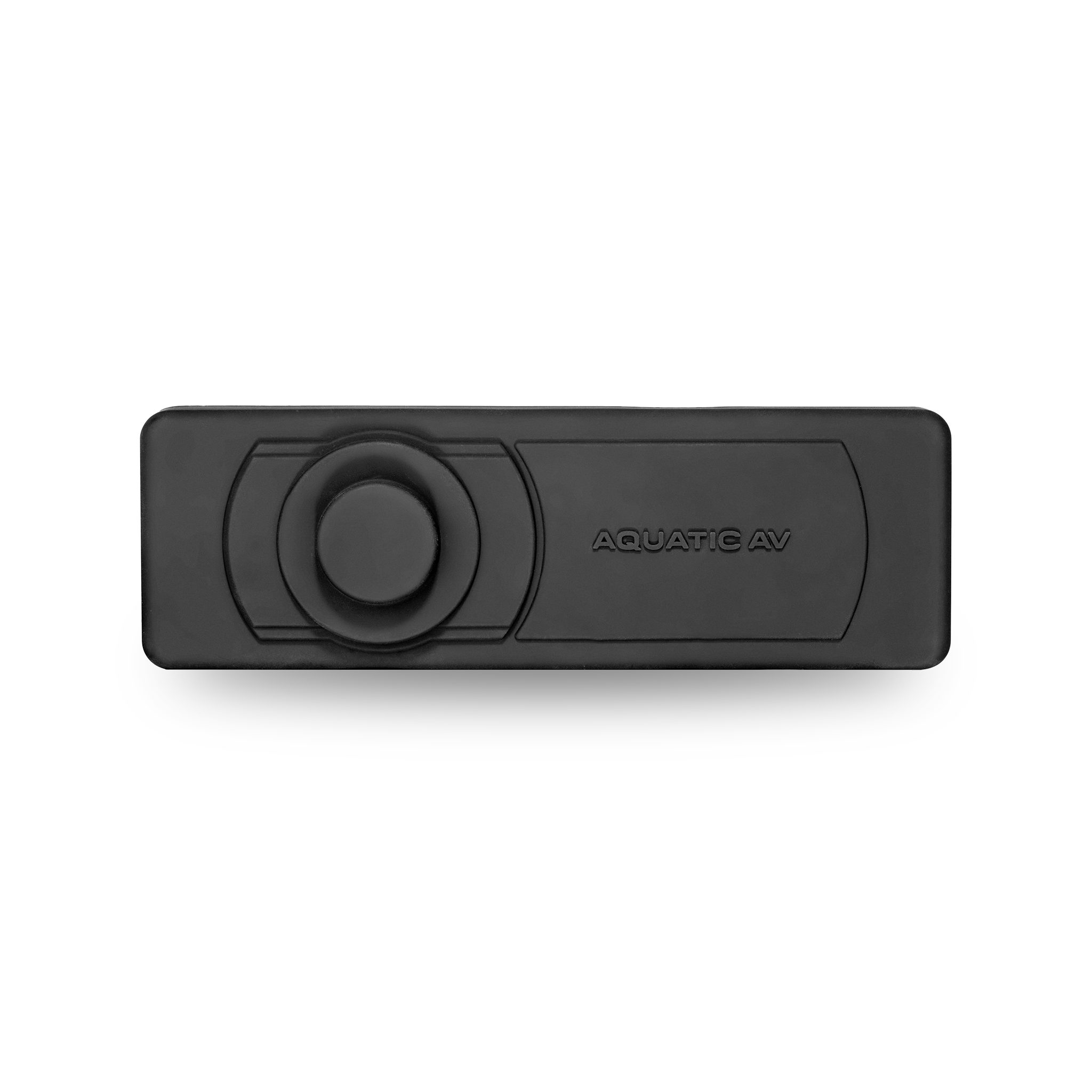

  • 1x Silicon Dust Faceplate
  • 1x 12-Pin Wiring Harness (AQ-UNH-2)
  • 4x Mounting Screws
  • Mounting Chassis and Hardware
