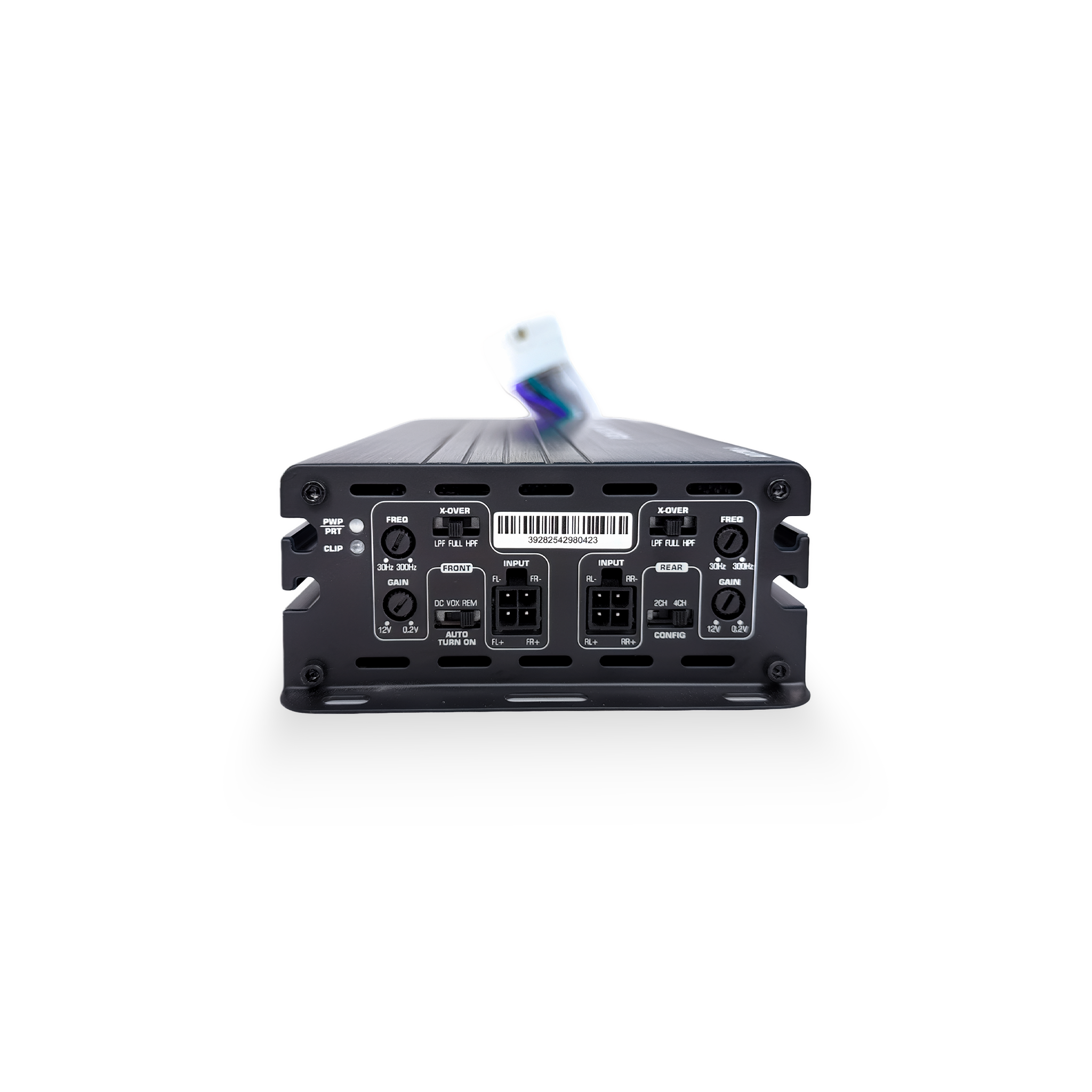

AD1200.4 4-Channel Amplifier
AD1200.4 4-Channel Amplifier
Sale price$499
AD1200.4 4-Channel Amplifier
Overview
Designed for the harshest conditions, this Class D digital amplifier delivers high-performance power with a compact footprint, making it the perfect choice for marine, powersports, and multi-environment applications.
Specifications
Specifications
| Type: | Class D Digital Amplifier |
| Environment Protection: | IP65 Rating |
| Power Output (Max) @ 4 Ohms: | 760W (4x 190W) |
| Power Output (Max) @ 2 Ohms: | 1,200W (4x 300W) |
| RMS @ 4 Ohm (Bridged): | 4x 520W |
| Frequency Response: | 20Hz - 20kHz |
| Signal To Noise Ratio: | 90dB |
| THD: | ≤0.5% |
| Input Sensitivity: | 12V - 0.2V |
| Best Efficiency: | >80% |
| Minimum Load: | 2 Ohm |
| Current Draw: | 103A |
| Overload Protection System: | Yes |
| Overheat Protection Temperature: | 75°C |
| Operating Voltage: | 9V - 16V DC |
In the Box
In the Box
Resources
Product Resources
Specifications
| Type: | Class D Digital Amplifier |
| Environment Protection: | IP65 Rating |
| Power Output (Max) @ 4 Ohms: | 760W (4x 190W) |
| Power Output (Max) @ 2 Ohms: | 1,200W (4x 300W) |
| RMS @ 4 Ohm (Bridged): | 4x 520W |
| Frequency Response: | 20Hz - 20kHz |
| Signal To Noise Ratio: | 90dB |
| THD: | ≤0.5% |
| Input Sensitivity: | 12V - 0.2V |
| Best Efficiency: | >80% |
| Minimum Load: | 2 Ohm |
| Current Draw: | 103A |
| Overload Protection System: | Yes |
| Overheat Protection Temperature: | 75°C |
| Operating Voltage: | 9V - 16V DC |
