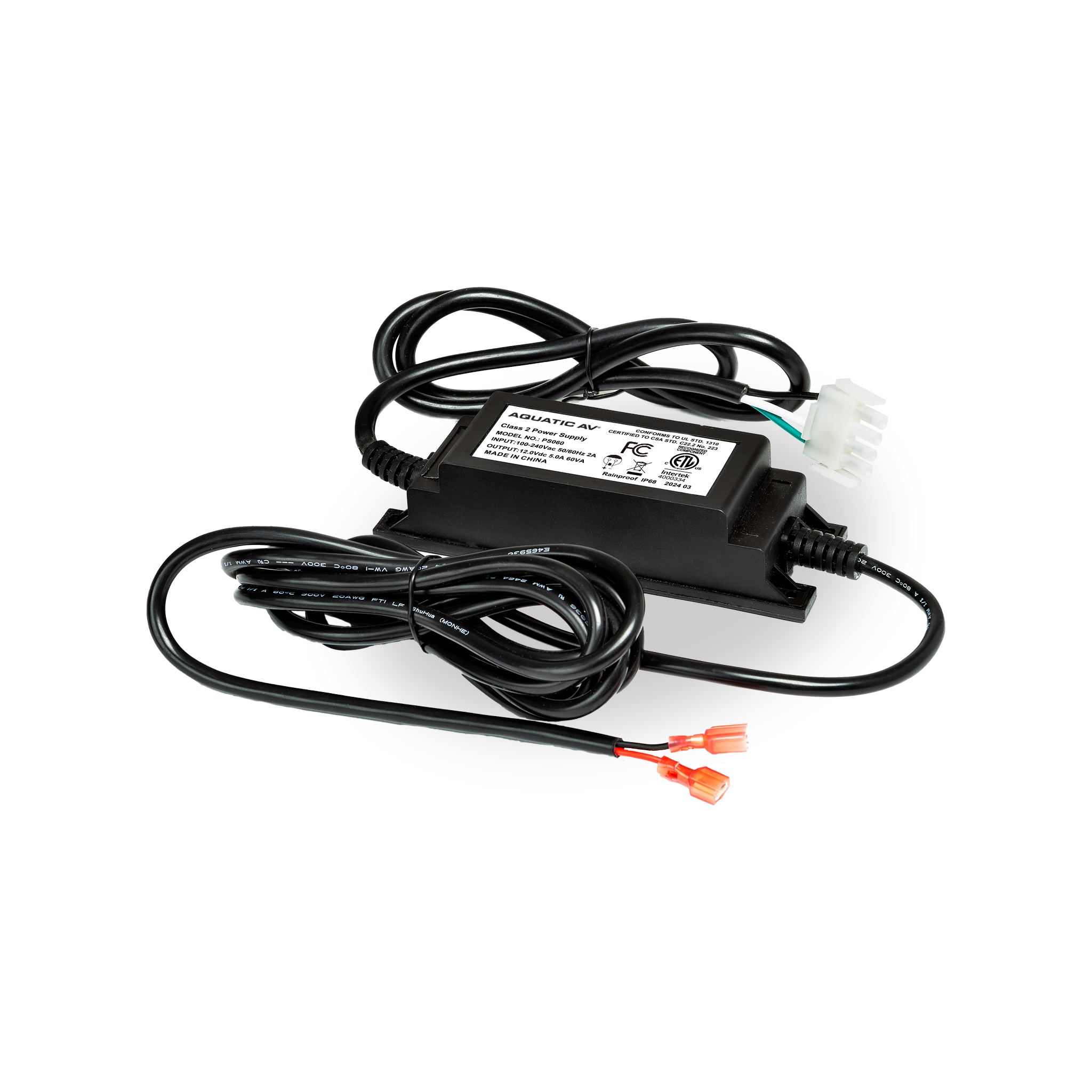

PS060 60W LED Power Supply
PS060 60W LED Power Supply
Sale price$79
PS060 60W LED Power Supply
Overview
The PS060 60W LED Power Supply is built for reliability in demanding environments, offering a regulated 12V DC output with a 5A capacity.
Specifications
Specifications
| Type: | Regulated Switching Mode Power Supply (5A, 12V DC) |
| Water Resistant: | Yes – IPx5 |
| Input Voltage: | 100-240V AC (Power Input Auto Sensing/Switching) |
| Input Frequency: | 50/60 Hz |
| Efficiency: | ≥87% |
| Power Consumption: | ≤0.5W (At 240V AC) |
| Power Factor: | ≥0.9 (At Full Load) |
| Short Circuit Protection: | Continuous |
| Output Plug: | 2x Female Spade Connectors (+12V DC (Red), Neg (Black)) |
| Output Voltage: | 12V DC Regulated |
| Output Current: | 5A |
| Ripple & Noise: | 260mV (Max) |
| Voltage Accuracy: | ±5% |
| Line & Load Regulation: | ±5% |
| Operating Temperature: | -20°C – 70°C |
| Storage Temperature: | -20°C – 85°C |
| Dimensions: | 160 x 51.5 x 38.6 mm |
| Certifications: | UL1563, UL1310, CSA, CE |
| Protection: | Over Voltage, Over Current, Over Temperature |
In the Box
In the Box
Resources
Product Resources
Specifications
| Type: | Regulated Switching Mode Power Supply (5A, 12V DC) |
| Water Resistant: | Yes – IPx5 |
| Input Voltage: | 100-240V AC (Power Input Auto Sensing/Switching) |
| Input Frequency: | 50/60 Hz |
| Efficiency: | ≥87% |
| Power Consumption: | ≤0.5W (At 240V AC) |
| Power Factor: | ≥0.9 (At Full Load) |
| Short Circuit Protection: | Continuous |
| Output Plug: | 2x Female Spade Connectors (+12V DC (Red), Neg (Black)) |
| Output Voltage: | 12V DC Regulated |
| Output Current: | 5A |
| Ripple & Noise: | 260mV (Max) |
| Voltage Accuracy: | ±5% |
| Line & Load Regulation: | ±5% |
| Operating Temperature: | -20°C – 70°C |
| Storage Temperature: | -20°C – 85°C |
| Dimensions: | 160 x 51.5 x 38.6 mm |
| Certifications: | UL1563, UL1310, CSA, CE |
| Protection: | Over Voltage, Over Current, Over Temperature |
