PS113 12V DC Audio Power Supply
PS113 12V DC Audio Power Supply
Sale price$99
PS113 12V DC Audio Power Supply
Overview

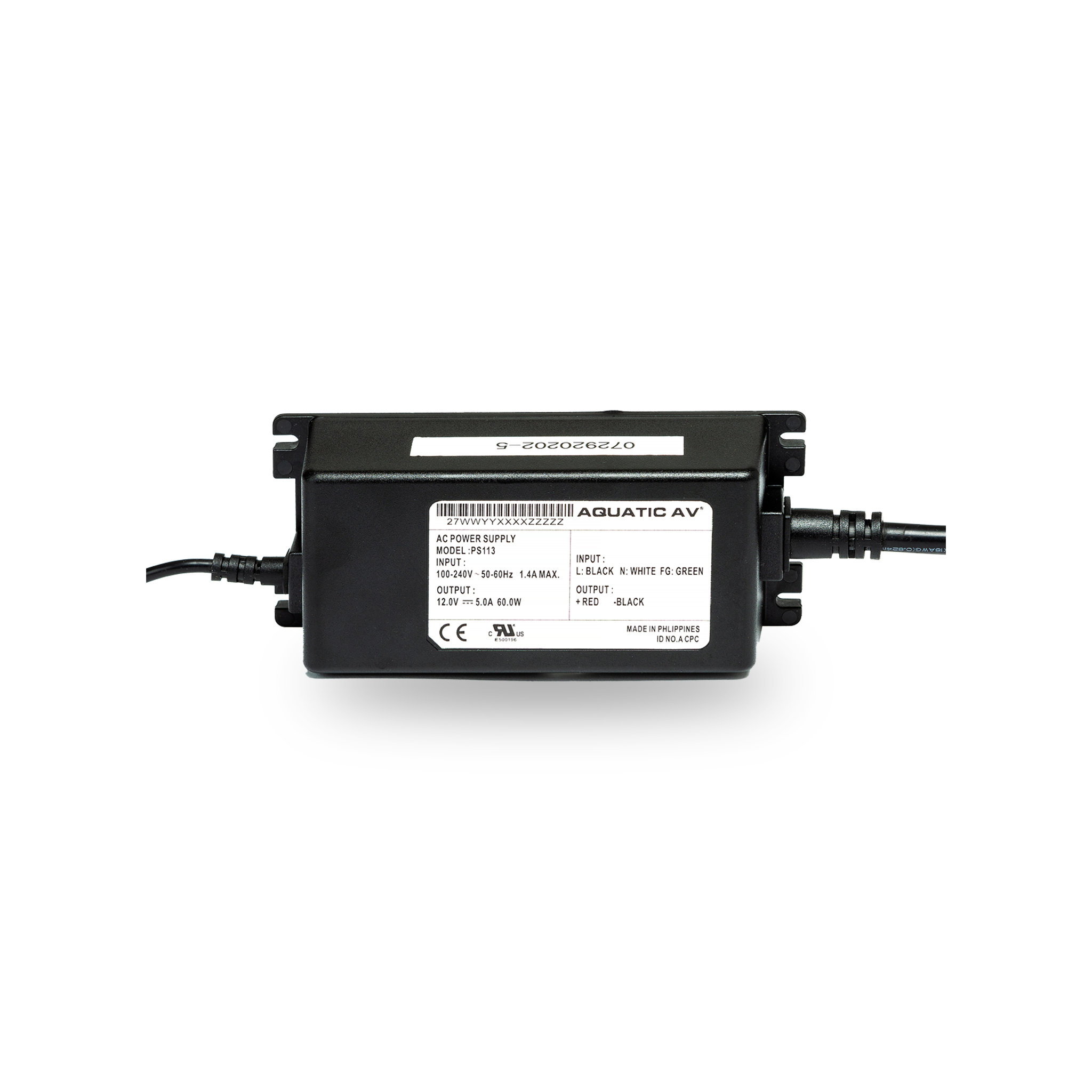

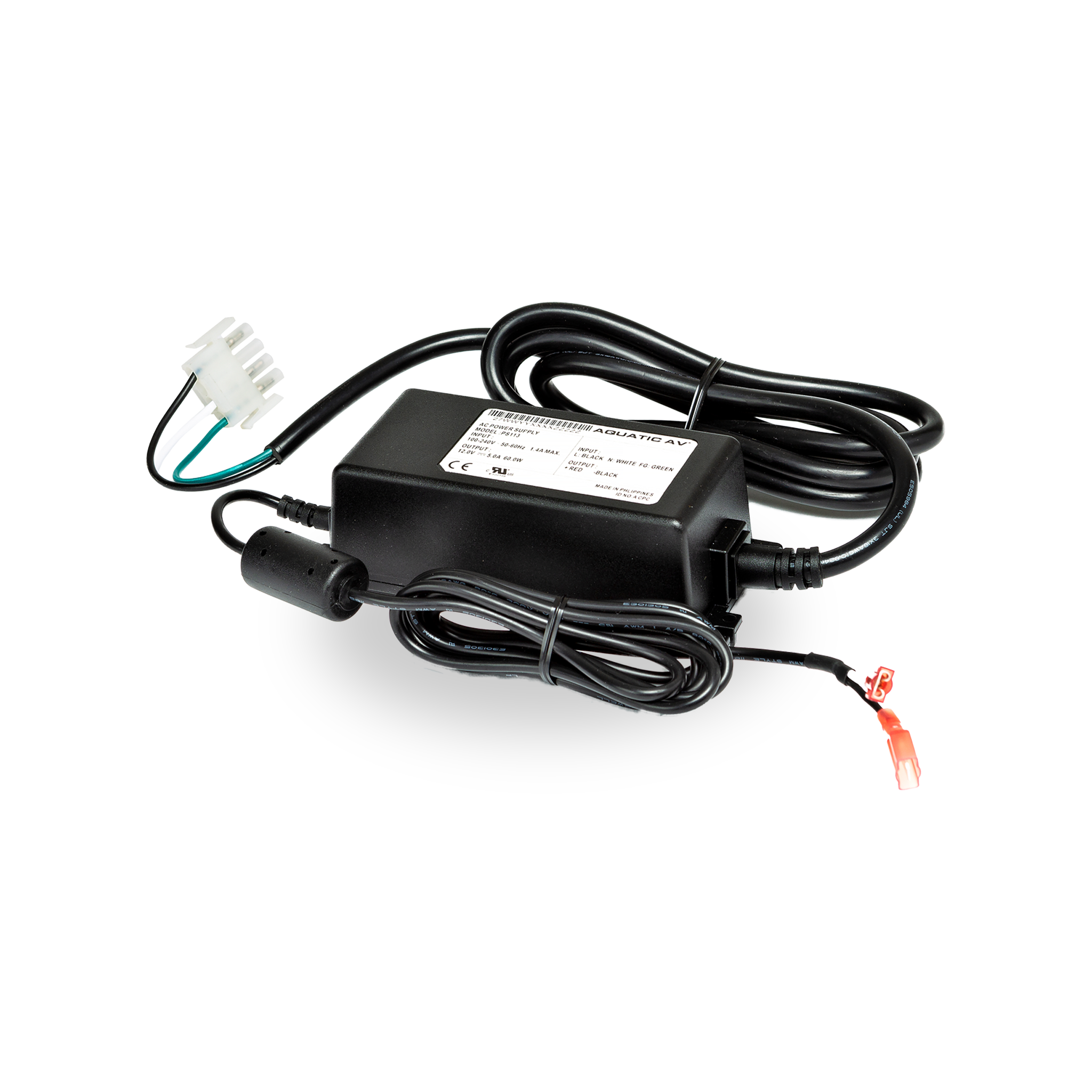

The PS113 Power Supply features dual voltage and compatibility with all Aquatic AV source units. Entirely waterproof, this device boasts an output of 12V and Amp 4-Position Connectors on the AC side with Spade Connectors on the DC side to make connecting to this power supply a breeze.
Specifications
Specifications
| Type: | Regulated Switching Mode Power Supply (5A,12DC) 100W |
| Water Resistant: | Yes – IP65 |
| Input Connector: | 4- Pin Amp/Molex Input Connector |
| Input Voltage: | 100-240V AC(Power Input Autosensing/Switching) |
| Input Frequency: | 50/60 Hz |
| Efficiency: | ≥87% |
| Power Consumption: | ≤0.5W (At 240V AC) |
| Power Factor: | ≥0.9 (At Full Load) |
| Short Circuit Protection: | Continuous |
| Output Connector: | 4x Female Spade Connectors (+13V DC (Red), Neg (Black)) |
| Output Voltage: | 12V DC Regulated |
| Output Current: | 12.3A |
| Ripple & Noise: | 260mV (Max) |
| Voltage Accuracy: | ±5% |
| Operating Temperature: | 0°C – 40°C |
| Storage Temperature: | -20°C – 80°C |
| Dimensions: | 160 x 39 x 52 mm |
| Certifications: | UL1563, UL1310, CSA, CE |
| Protection: | Over Voltage, Over Current, Over Temperature |
